Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,

  • 1
  • 2

Brand Name : PHCONN

Model Number : RMS-048H6-10F6-Y2-6

Certification : IATF 16949 ISO 9001

Place of Origin : China

MOQ : 1000 PCS

Price : Negotiable price

Payment Terms : L/C, D/A, T/T, D/P, Western Union, MoneyGram

Supply Ability : 5000000PCS/Week

Delivery Time : 3-30 work days

Packaging Details : vacuum package,boxes in a catrton

Color : Black/White/OEM

Product name : mount ethernet modular jack waterproof rj45 connector

Pin : Brass tin/plated

Insulation resistance : 1000 megohms min @ 500 vdc

Keywords : rj45 connector/rj45 female connector/rj45 jack/rj45 socket

Contact resistance : 50 Milli ohms

Contact material : Phosphor bronze 0.46mm

Sample : welcome ask sample for testing

Contact Now

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
Part Number RMS-048H6-10F6-Y2-6
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.40
Package Length (mm) 21.30
Package Width (mm) 15.90
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

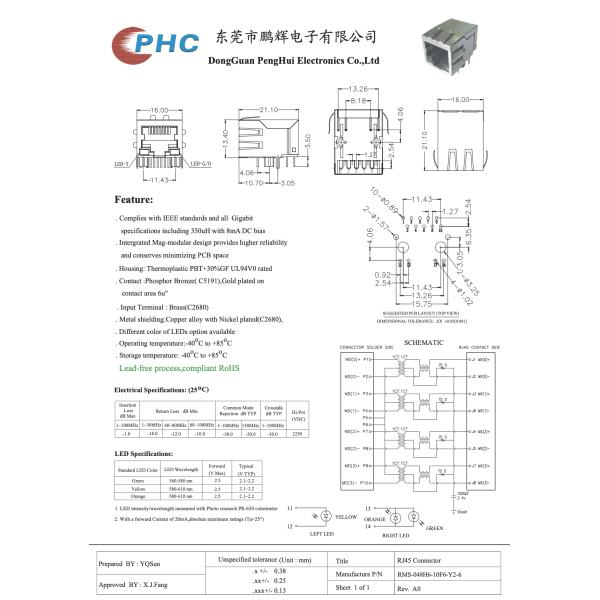

Drawings

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,

Packing

Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,Single Port RJ45 Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,
